Koj Pharmaceutical Cov Tshuaj Ntau Lawm
Lub tuam txhab slogan
Kev Tu Mob Ntau Ntxiv ntawm Kev Ntsuas
Xav Ntxiv Rau Cov Neeg
LUS THOJ NPAJ
| Tsis yog. | Lub npe | Nqi | Chav Nqe | Tag Nqi |
1 | YHA-2A Tuaj Lifting Tov Khoom (nrog 2000L mixing chim) | 1 Teeb | USD 58,000 | USD 58,000 |
Yeem: | ||||
1 | Tu tshuab (CIP systerm) | 1 Teeb | USD20,000 | USD20,000 |
2 | Taub Fwj (600L) | 1 Teeb | USD4,000 | USD4,000 |
4 | Taub Fwj (1000L) | 1 Teeb | USD4,800 | USD4,800 |
5 | Taub Fwj (2000L) | 1 Teeb | USD5,300 | USD5,300 |
Tag Nrho Cov Nyiaj | USD 96,300 FOB Ningbo Chaw nres nkoj los ntawm hiav txwv | |||
Lus cim:
1. Tag nrho cov nqi saum toj no muaj xws li: Ib qho ntawm cov pellet feeder, ib txheej hmoov pub hmoov, Ib txheej pwm, ib lub tshuab nqus tsev twj, ib plua tshauv plhaub, ib lub khob tshuaj polisher, ejector muaj nuj nqi, PLC thiab Kuaj Npo rau kev khiav hauj lwm.
2. Nyiaj them: 30% T / T rau deposit, 70% T / T ua ntej xa zaub mov
3 . Lub Sij Hawm Lub Sij Hawm : 45 hnub tom qab tau txais koj 30% T / T tso nyiaj.
4 . Siv Tau : tsis pub dhau 60 hnub tom qab hnub no quoting.
5. Kev Qhia thiab Kev Kho: Peb yuav nruab thiab kuaj lub tshuab ua haujlwm zoo tshaj plaws ua ntej xa zaub mov. Yog hais tias tus neeg yuav tsum tau peb cov kws kho los kho lub tshuab thiab cob qhia kws kho mob thaum caij npav, peb yuav xa cov kws kho mob nyob hauv. Tag nrho peb cov nuj nqis nrog rau daim pib mus rau hauv lub tshav dav hlau, cov kev xa mus rau koj lub Hoobkas, Cov Chaw Them & Cov Txuas Nyiaj Txiag yuav them los ntawm koj. Yog tias tus nqi ntawm peb cov kws kho mob, qhov kev pab cuam ntawm $ 50 tauj ib hnub yuav raug them ntxiv.
Lub caij muaj kev ruaj ntseg : Muaj ib xyoos rau kev lav phij xauj tag nrho. Thiab hauv lub xyoo no yog tias lub tshuab tawg los ntawm qhov teeb meem Mechanical, tag nrho cov seem yog dawb. Cov kev pab cuam ntawm lub tshuab tag nrho tab sis yog lub tshuab lub neej.
Tom qab kev muag khoom: 1. Peb muaj xya cov kws kho mob uas tau txais daim ntawv hla tebchaws tuaj yeem npaj mus thoob ntiaj teb los muab kev pabcuam rau koj.
Peb muaj 24 xuab moos hot line rau Technical Support.
Peb tau 18hours internet kab rau kev txhawb nqa.
Video yees duab hauv rhiav kom pab koj kho thiab daws cov teeb meem ntawm lub tshuab ua haujlwm.
LTPM CHINA cog lus zoo ntawm lub tshuab thiab tom qab muag kev pab.

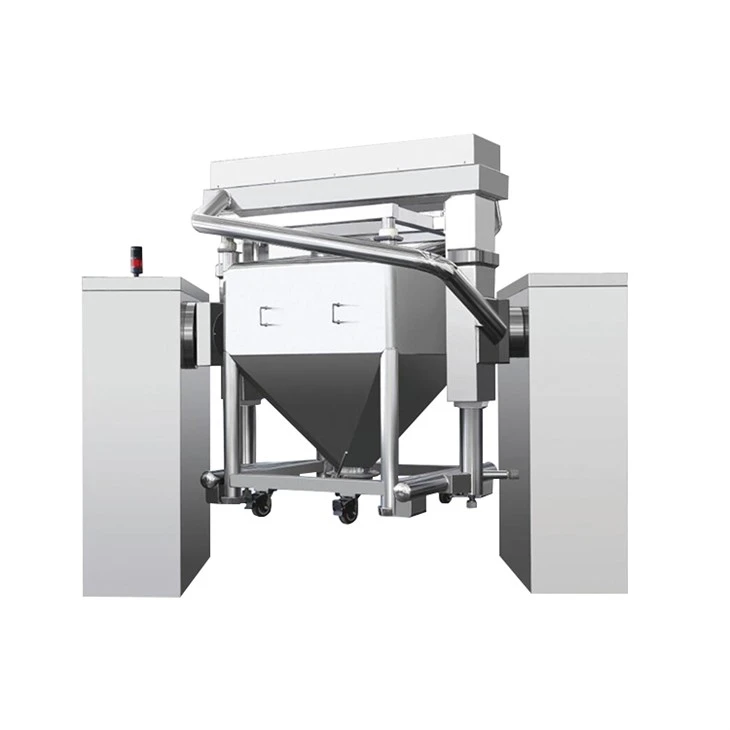

YHA-2 Tuaj Tshuab Tuaj Nyom
Cov ntawv thov :
Lub tshuab yuav tuaj yeem ua tiav tag nrho cov kev ua haujlwm xws li kev tshem, clamping, tov, txo qis, thiab lwm yam .Txheej tshem tawm cov raj qhwv tov thiab ntau yam kev sib tw ntawm cov lus sib txawv sib txawv raws li qhov sib xyaw kom haum ntawm cov khoom siv loj thiab ntau lub vatieties ntawm producst.Nws yog lub cav zoo rau mixing hauv cov nroj tsuag kws.Nws tseem lug siv xws li inductries li tshuaj, tshuaj lom neeg kev lag luam, khoom noj khoom haus, thiab lwm yam.
Ntaus:
Lub tshuab yog ib lub tshuab tshiab tshawb nrhiav thiab tsim tau zoo los ntawm peb lub tuam txhab raws li Suav teb cov lus tseeb tom qab absorbing thiab digesting thoob ntiaj teb advanced technology.Nws muaj xws li nta li tsim nyog qauv, ruaj khov, yooj yim khiav hauj lwm, tsis muaj cov ces kaum tuag, thiab tsis raug bolts.
Cov neeg ua haujlwm (lub voj voog) muaj ib lub voj voog ntawm 30 ° nrog lub voj voog txoj kab sib tw. Cov ntaub ntawv nyob rau hauv qhov sib tov tig tau tig nrog lub nruas thiab ua tangential khiav raws cov raj qhwv, ua kom muaj zog thiab siab ceev nrawm thiab ua tiav qhov zoo tshaj plaws nws cov nyhuv.
PLC tswj kev tswj hwm tau txais kev pabcuam lawm.Nws yog npaj nrog qhov kev tiv thaiv kev ruaj ntseg thiab qhov ntxig ntawm cov npauj npaim nrog lub misoperation preventer kom muaj kev ruaj ntseg ntau lawm.
Cov ntaub ntawv siv tau los ntawm ntau hom kev ua hauj lwm hauv tib lub nkoj tsis tas yuav tsum tau siv cov khoom siv hloov, cov khoom siv, thiab lwm yam.
Lub tshuab ua haujlwm tswj cov plua plav paug thiab hla qhov kis kab mob, txo cov ntaub ntawv, tswj cov khoom ntim khoom, cov txheej txheem ua kom zoo, thiab ua tau raws li cov kev cai ntawm cov tshuaj noj hauv GMP.
Ntsiab Cai:
Lub tshuab yog tsim los ntawm cov tshuab lub hauv paus, tus tsav tsheb, kev tsav tsheb, kev tsav tsheb thiab kev txuag zog, kev tswj lub zog thiab kev tswj qhov system.
Thaum nws ua haujlwm, nias lub voos kom tov rau hauv lub nras.
Nkag mus rau qhov kev zov me nyuam tsis siv neeg, thiab tawm tswv yim pab pawg txheej txheem.
Nias lub khawm "confirm" khawm ntawm lub vijtsam khawm kom tsis thwj nqa lub voj voog kom mus rau qhov chaw thiab tau txiav nws.
Tom qab lub tshuab PLC tswj tau txais lub clamping teeb liab, tus tsav tsheb ua hauj lwm thiab ua tawm ntawm nws cov khoom raws li lub sij hawm teem thiab kev sib hloov ceev.
Tom qab lub teeb tsis tau mus txog, tus gyrator yuav tau nres vertically.Thaum tib lub sij hawm, tus braking system ua haujlwm thiab qhov nws tov tiav lawm.
Tom qab ntawd nkag mus rau qhov kev qhia ua haujlwm, nias lub khawm "lower" khawm, lub vov nws lub voj voos yuav poob rau txoj hauj lwm thiab nres nres, thiab cov ntaub ntawv yuav tsum luam tawm.
Tom qab ntawd lub vov hmoov sib tov raug thawb tawm thiab pauv mus rau lwm txoj kev.
Cov Ntaub Ntawv Tshaj:
| Qauv | YHA-2A | |
Mixing ceev | 3 ~ 12 rpm | |
Mix hopper clamping ntau | 2000L | |
Installation Fais fab | 7.0 kw | |
loading coefficient | 50 ~ 70% | |
Lifting ceev | 580 hli / min | |
Tshuab Luj | 3000Kg | |
Mixed Precision | ≥99% | |
Fais fab mov | 380V 50HZ | |
Nws lub sijhawm | kho tau | |
Lub suab nrov | ≤70dB | |
Loj (hli) | H | 3580 |
H1 | Xyoo 1750 | |
H2 | Xyoo 2090 | |
H3 | 3045 | |
H4 | 3450 | |
H5 | 267 | |
W | 3400 | |
W1 | 1453 | |
W2 | 440 | |
L | 3207 | |
L1 | 603 | |
Cov Kev Xaiv Cov Khoom Sau:
| Tsis yog. | Lub npe | Qauv | Chaw Tsim Tshuaj |
1 | Nqa cov khoom thauj | GV2ME10C | Schneider |
2 | Teb cov khoom thauj | GV2ME16C | Schneider |
3 | Nce tau hu rau | LC1D12 | Schneider |
4 | Tawm contactor | LC1D12 | Schneider |
5 | Nres contactor | LC1D12 | Schneider |
6 | Lub zog muaj zog | DR-120-24 | LTPM Tuam Tshoj |
7 | Transformer | BK-300 | LTPM Tuam Tshoj |
8 | Kev hloov qhov sib thooj | E2E-X5E1 | OMRON |
9 | Photoelectric hloov | E500-A / DM1 | LTPM Tuam Tshoj |
10 | Tseg lim | XCE-118 | Schneider |
11 | Tawm txwv | XCE-118 | Schneider |
12 | Intermediate relay | RXM2LB2P7 | Schneider |
13 | Hloov kev kub ceev | ZB2BS54C | Schneider |
14 | Qhov tseem ceeb hloov | ZB2BG2C | Schneider |
15 | Qhov taw qhia teeb | XB2BVM4LC | Schneider |
16 | Lifting ceev reducer | RV-50-15F2 | MRD, Shanghai |
17 | Lifting lub cev muaj zog | 1.5Kw 380V | SIEMENS |
18 | Lifting ntswj | T36 × 6 | LTPM Tuam Tshoj |
19 | agile | T36 × 6 | LTPM Tuam Tshoj |
20 | Teb ceev ceev reducer, fais tshuab | 5.5Kw 380V | Lentz, Lub teb chaws Yelemees |
21 | PLC | CPU224CN | SIEMENS |
22 | Kov npo | TP700 | SIEMENS |
23 | Zaus converter | MM440 7.5KW | SIEMENS |
24 | Tshuab luam ntawv | WH-E161Z70-20E1122T55 | BRIGHTEK |
Tshuab
LTPM tau txais kaum yim xyoo Pharmaceutical Machinery raug kev tsim. LTPM yog lub tuam txhab ua lag luam uas muaj kev lag luam thiab tsom rau kev tsim cov tshuab zoo siab. Peb ntiav cov neeg kawm vaj tse 15 thawm xyoo ntawm cov qauv tsim thiab kev txhim kho technology, txhua tus engineer tau txais yam tsawg kawg nkaus kaum xyoo ua haujlwm. LTPM yog koj tus Kws Tshaj Lij Muab Tswv Yim ntxiv.
Kev Tswjhwm Zoo:
LTPM muaj ib lub koom haum tswj kev tswj kom paub tseeb txhua yam khoom hauv ntau theem, los ntawm qhov kev cog lus ntawm cov khoom kom tiav cov khoom siv rau cov neeg muas zaub. Yuav kom muab cov neeg siv khoom zoo tshaj plaws, cov khoom siv LTPM khoom tsim raws li cov qauv thoob ntiaj teb, Xws li FDA, GMP, cGMP, thiab lwm yam. LTPM tau txais cov ntawv pov thawj ntawm cov neeg sab nraud pov thawj.
Tom Kev Pab Muag Khoom:
LTPM muaj tus pab pawg neeg tom qab muag kev pabcuam uas muaj xya Cov Tuavxam npaj txhij thoob lub ntiajteb. LTPM tseem tsim thiab cob qhia pab pawg ua haujlwm hauv kev tawm tswv yim txawv teb chaws rau kev pab cuam thaum lub sij hawm tom qab kev muag khoom muag. Peb yuav muaj pab neeg hauv Philippines, Peru, Ecuardor, Colombia, Bangladesh, Pakistan, Ghana thiab Nigeria.LTPM tseem nrhiav kev lag luam ntau lub tuam txhab kom muaj kev lag luam zoo.
